How to Install a Vacuum Breaker Without Screwing It Up


A vacuum breaker is a crucial component in preventing backflow into the water supply, ensuring safe and clean water. Proper installation is vital for functionality and compliance with plumbing codes.

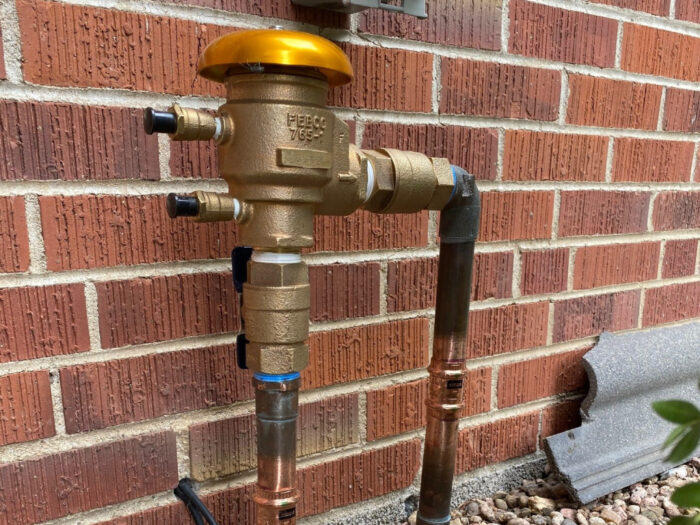

Importance of Vacuum Breakers


Vacuum breakers are designed to prevent backflow, which occurs when the pressure in a water system drops, causing contaminated water to flow back into the clean water supply.

This backflow can lead to serious health hazards, as it may introduce pollutants and harmful microorganisms into potable water.

By creating an air gap, vacuum breakers block the reverse water flow, thus safeguarding water quality.

Proper installation of vacuum breakers is essential not just for their effective operation but also to meet plumbing codes and regulations. Incorrect installation can render the vacuum breaker ineffective, posing risks of contamination.

Moreover, adherence to plumbing codes, such as the 2021 Uniform Plumbing Code, is mandatory for legal compliance and to avoid potential fines or penalties.

These codes ensure that the installation meets safety standards and functions as intended, providing peace of mind for both homeowners and professionals.

Step 1: Showing the Ropes


Before starting the installation process, it’s crucial to understand the different types of vacuum breakers and the plumbing codes they must adhere to.

Hose Bibb Vacuum Breakers

These are typically attached to outdoor faucets and prevent backflow when a hose is connected. They are easy to install and are a common choice for garden hoses and similar applications.

Wall Hydrant Vacuum Breakers

These are integrated into the wall hydrant itself, offering a more permanent solution. They are ideal for situations where frequent hose attachment and detachment are required.

When installing a vacuum breaker, it’s essential to comply with local plumbing codes. For instance, the 2021 Uniform Plumbing Code mandates specific installation practices to ensure safety and functionality.

Familiarize yourself with these codes, as they provide guidelines on installation height, placement, and required components. Proper adherence to these codes is about compliance and ensuring the vacuum breaker functions effectively to prevent backflow.

Step 2: Preparation


Preparation is key to a successful installation. Begin by gathering all the necessary tools and materials. You will need a vacuum breaker, a wrench, Teflon tape, and potentially a fine thread adapter if your faucet requires it. Having all materials on hand before you start will streamline the process and help avoid interruptions.

Safety Precautions

Safety should always be a priority. Before installing, turn off the water supply to the hose bibb or wall hydrant where you’ll be working. This will prevent water from spraying out during installation and reduce the risk of accidents.

Ensure the area is clear of any obstacles and that you have adequate lighting to see clearly what you are doing. Wear protective gloves to avoid injuries while handling tools and equipment.

By preparing thoroughly and following safety precautions, you can ensure a smooth and efficient installation process. Proper preparation sets the stage for a successful installation, minimizing the risk of errors and complications.

Step 3: Installation Process

Now let me guide you through the installation process.

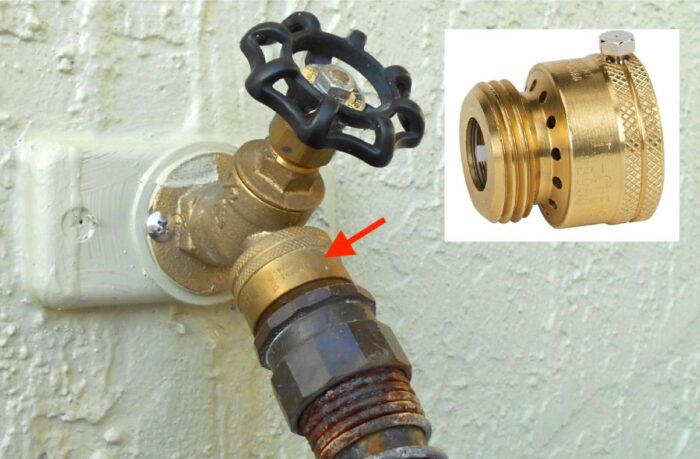

Attaching a Vacuum Breaker to a Hose Bibb

Location and Height: Install the vacuum breaker at least six inches above the ground to ensure proper operation and compliance with plumbing codes. This height helps maintain an air gap, preventing backflow effectively.

Applying Teflon Tape

Wrap Teflon tape around the threads of the hose bibb. This tape creates a watertight seal and prevents leaks. Ensure the tape is wrapped snugly and smoothly around the threads without overlapping too much, which could cause uneven sealing.

Screwing on the Vacuum Breaker

Attach the vacuum breaker to the hose bibb by screwing it on manually. Once it’s hand-tight, use a wrench to secure it further, ensuring it’s snug but not over-tightened. Over-tightening can damage the threads and the breaker itself.

Breaking the Set Screw

If required by local plumbing codes, break the set screw head. This step is crucial as it prevents the removal of the vacuum breaker, ensuring it stays in place to prevent backflow. Use a suitable tool to break the set screw head carefully, ensuring you don’t damage the vacuum breaker or the hose bibb.

Dealing with Fine Thread Adapters


Identifying Thread Types: Check if your faucet uses fine threads, as some models require a fine thread adapter for the vacuum breaker to fit properly. Identifying the correct thread type is essential for a secure and leak-free connection.

Connecting the Adapter

If a fine thread adapter is needed, install it by screwing it onto the faucet threads. Once the adapter is securely in place, you can attach it to the adapter following the same steps as for a standard hose bibb. Ensure all connections are tight and sealed with Teflon tape to prevent leaks.

By following these steps carefully, you can ensure a successful installation of your vacuum breaker, whether it’s directly onto a hose bibb or with the use of a fine thread adapter.

Testing and Troubleshooting

After installation, it’s crucial to test the vacuum breaker to ensure it’s functioning correctly and to address any issues that may arise.

Initial Test

Turn on the water supply slowly and observe the vacuum breaker. Check for any immediate leaks around the connections. If no leaks are visible, increase the water pressure gradually and continue to monitor the vacuum breaker.

Addressing Leaks

If leaks occur, turn off the water supply and check all connections. Ensure the Teflon tape is applied correctly and that all fittings are tightened properly. Sometimes, simply reapplying the tape and retightening the connections can resolve leaks.

Handling Common Issues

If the vacuum breaker drips continuously, it may indicate an issue with the seal or an internal problem. Disassemble it and inspect the internal components for damage or debris.

Clean or replace any faulty parts as needed. Additionally, ensure the vacuum breaker is installed at the correct height and angle, as improper positioning can cause issues with sealing and operation.

Regular testing and troubleshooting can prevent potential problems and ensure the long-term functionality of the vacuum breaker. Addressing issues promptly and correctly will help maintain a safe and efficient water system.

The Bottom Line

Proper installation of a vacuum breaker is crucial for preventing backflow and ensuring water safety. By following these steps carefully, you can install a vacuum breaker correctly and comply with plumbing codes. If unsure, consult a professional for assistance.
